GP PLUS SELF SUPERMARKET SCALES

	GP PLUS SELF SUPERMARKET SCALES

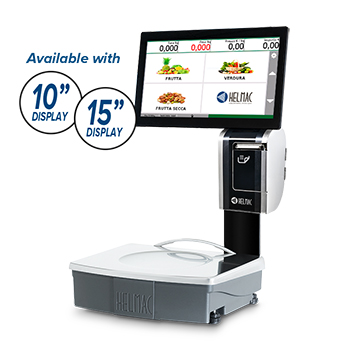

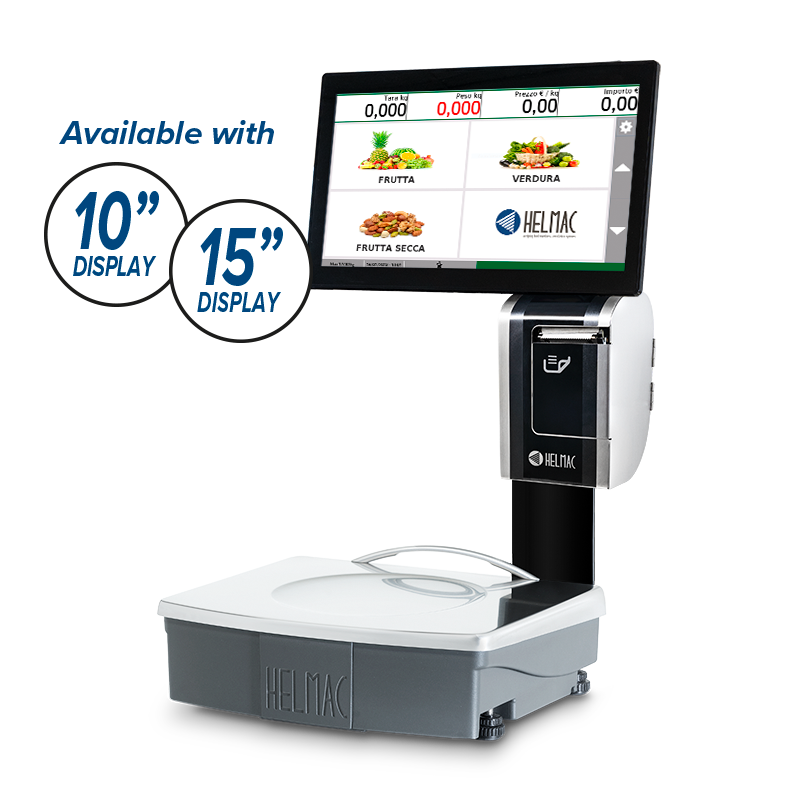

Supermarket self-service scales with a high-performance touchscreen display. Equipped with printer/labeller with high-speed rewinder.

MAIN FEATURES

10.1" or 15.6" capacitive touchscreen.
Thermal printer/labeller, resolution 8 dots/mm. Max. roll width 63 mm, outer diameter 110 mm.
Print unit easily accessible for maintenance and roll change.
Stainless steel and polymer structure and body.
Stainless steel loading plate 368 x 250 mm (l x w).
230 VAC power supply complete with internal rechargeable 24VDC emergency batteries.

Available on request HSM PLUS management software for programming master data, images and advertising on Helmac PLUS series scales from a PC.

DOWNLOAD

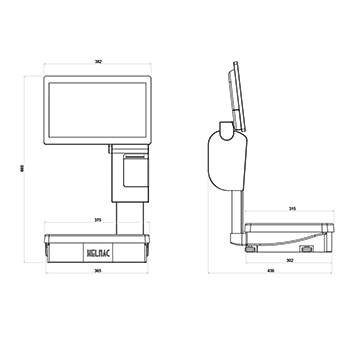

QSG_GP_PLUS_TOUCH_EN.pdf	TECH_DRAWING_GP15SELF1230.pdf

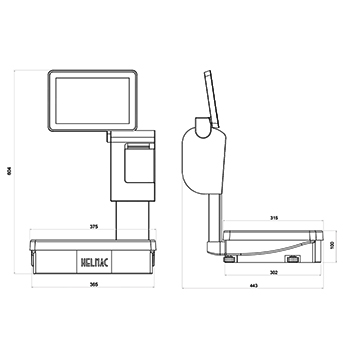

TECH_DRAWING_GP10SELF1230.pdf

Retail scales: Available versions

	Code	Description
	GP10SELF1230-2	GP1 PLUS SELF 10" scale, capacity 12/30 kg, division 2/5 g
	GP15SELF1230-1	GP1 PLUS SELF 15" scale, capacity 12/30 kg, division 2/5 g

Calibration options

	Code	Description
	881018	Version 3/6 kg, division 1/2g.

Scales for shops and supermarkets: Options (to be specified when ordering the scale)

	Code	Description
	810000	Stainless steel bowl-shaped plate with discharge outlet, dimensions 330 x 385 mm, height 45 mm, for scales with column.
	840069	Protective treatment for use in saline and harsh environments.
	846079	Anti-sticking treatment for stainless steel plate of GP and GPE series scales. It makes it easier to remove labels that are attached to the scale plate.

Connection cables

	Code	Description
	RTR802	Mini router for Wi-Fi connection between scales.
