GP PLUS 10T SERIES SUPERMARKET SCALES

	GP PLUS 10T SERIES SUPERMARKET SCALES

INFORMATION

Available upon request:
Approval:

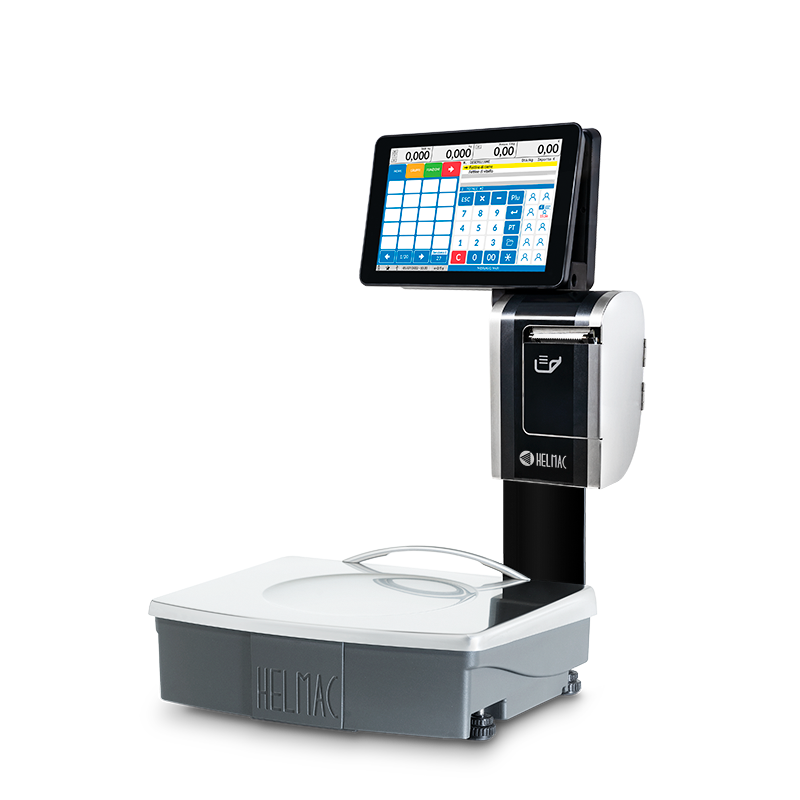

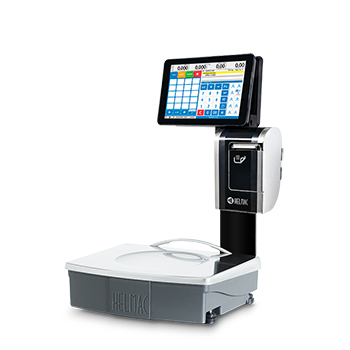

High-performance supermarket scales particularly suitable for assisted sales. Equipped with 10" capacitive touchscreen display on operator side and 10" TFT display on customer side.

MAIN FEATURES

10-inch capacitive touchscreen on operator side.

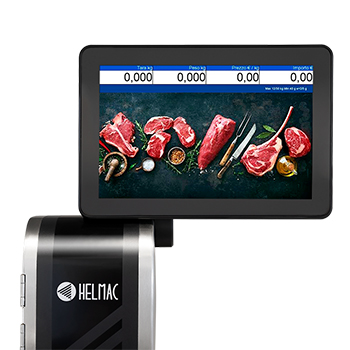

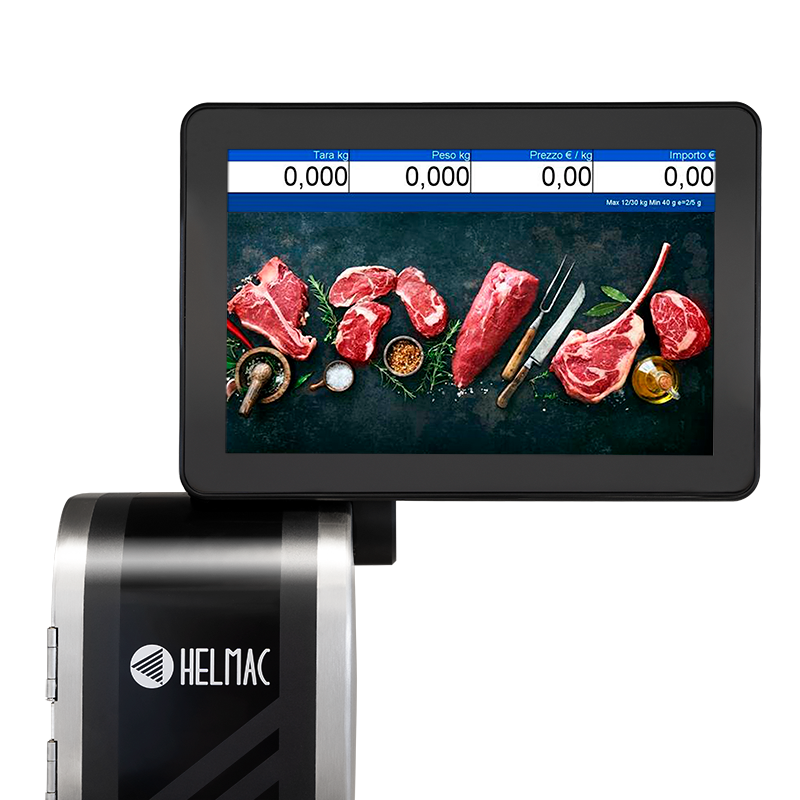

10-inch TFT display, LED backlit, customer side.
PC-based operating system.
Thermal labeller with 8 dots/mm resolution, ideal for labelling pre-packed products.
Printing width up to 55 mm.
Max. roll width 60 mm, external diameter 110 mm.
Print unit easily accessible for maintenance and roll change.
Stainless steel plate 370 x 310 mm (l x w).
230VAC power supply.

FUNCTIONS

Configurable work screens according to the customer requirements.
Sales statistics (with graphs): operators, schedules, groups, PLUs and traceability.
Time-based advertising management with videos and images.
DG-Shop monitor that can be connected to a queue management system.
Management of time-based or customer-specific promotions linked to ESL.
Printing and management of allergens and nutritional information.
Printing of EAN-13 barcodes, GS1-128 barcodes and dynamic QR Codes.
Activation of different price lists at the point of sale.
Change of label layout and logo at the point of sale.
Logo management and firmware maintenance with HLL PRO (Helmac Label Loader) software, downloadable from the website.
Our scales are compatible with the main back-office systems.

MANAGEMENT SOFTWARE

Available on request HSM PLUS management software for programming master data, images and advertising on Helmac PLUS series scales from a PC.

DOWNLOAD

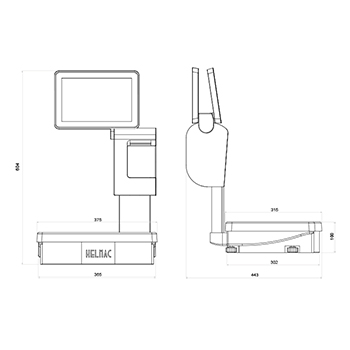

QSG_GP_PLUS_TOUCH_EN.pdf	TECH_DRAWING_GP10TOUCH1230.pdf
Setup_HLL Pro_3.19.12.exe

Retail scales: Available versions

	Code	Description
	GP10TOUCH1230-2	GP PLUS 10T bench scale with dual 10.1-inch color display: operator-side touchscreen, customer-side TFT. Capacity 12/30 kg, division 2/5 g.

Calibration options

	Code	Description
	881018	Version 3/6 kg, division 1/2g.

Scales for shops and supermarkets: Options (to be specified when ordering the scale)

	Code	Description
	810000	Stainless steel bowl-shaped plate with discharge outlet, dimensions 330 x 385 mm, height 45 mm, for scales with column.
	840069	Protective treatment for use in saline and harsh environments.
	846079	Anti-sticking treatment for stainless steel plate of GP and GPE series scales. It makes it easier to remove labels that are attached to the scale plate.

Connection cables

	Code	Description
	RTR802	Mini router for Wi-Fi connection between scales.

Pdf product page All the specifications and images can be subject to variations and upgrades without prior notice.
