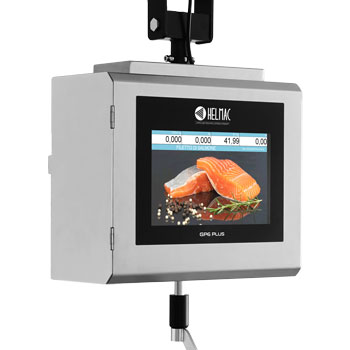

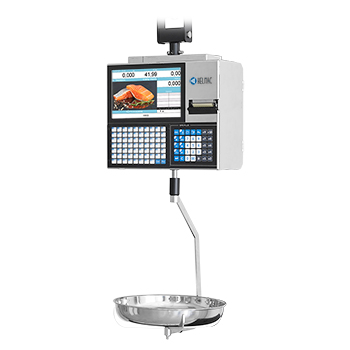

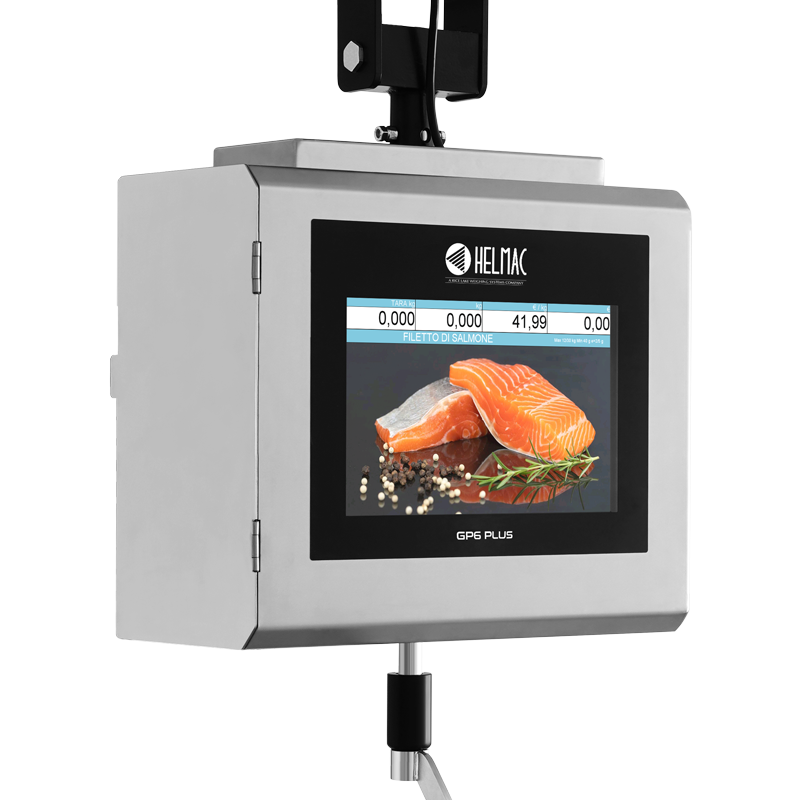

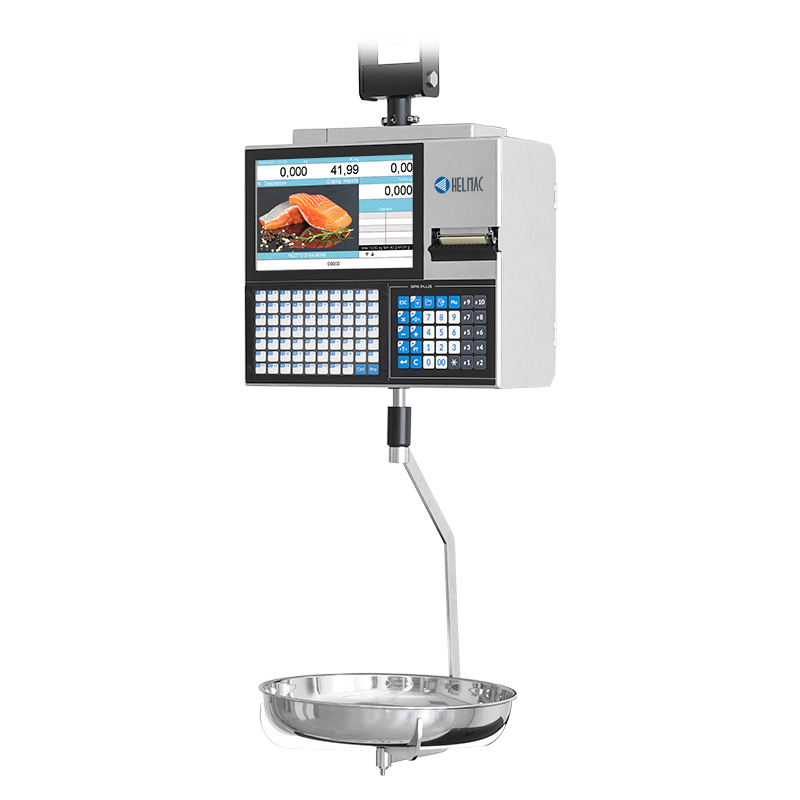

GP6 PLUS SERIES SCALES FOR FISH MARKET

	GP6 PLUS SERIES SCALES FOR FISH MARKET

INFORMATION

Available upon request:
Approval:

MANAGEMENT SOFTWARE

Available on request HSM PLUS management software for programming master data, images and advertising content of Helmac PLUS series scales from PC.

Stainless steel hanging labeling scales, ideal for fish shops and environments where water and salt make for a particularly aggressive working environment. Thanks to 10.-inch displays, stores can use videos and advertising materials to display products and deals to customers.

FEATURES

Dual displays (operator and client side) TFT 10.1 inches, LED backlit, Resolution 1280 x 800 pixels
Double waterproof keyboard consisting of 70 mechanical PLU keys and 35 mechanical keys. 10 operators. PC-based operating system.
Thermal labeling machine with 8 dots/mm resolution, ideal for prepackage labeling.
Print width up to 55 mm.
Maximum speed 150 mm/s.
Maximum roll width 60 mm, outer diameter 110mm.
Easy roll replacement via removable door.
Stainless steel construction.
Stainless steel bowl plate, outer diameter 315 mm, bottom diameter 260 mm, h= 55 mm.
Fixing tube diameter: 26 mm outside, 19 mm inside (see downloadable technical drawing in "DOWNLOAD" section).
230Vac power supply.

FUNCTIONS

Working modes: receipt, labeling and single item.
Sales statistics (also with graphs): operators, hours, groups, PLUs and tracking.
Time-based advertising management with video and images.
Queue eliminator system connectable to DG-Shop monitors.
Management of promotions by time or by customer linkable to ESL.
Printing and management of allergens and nutritional info.
EAN-13, GS1-128, dynamic QR code barcode printing.
Activation of different price lists in sales phase.
Label and logo layout change in sales phase.
New functions to ensure maximum work efficiency.
Our scales are compatible with major back-office systems.

DOWNLOAD

QSG_PLUS_Series_Scales_ENG.pdf

TECH_DRAWING_GP6_PLUS.pdf

Retail scales: Available versions

	Code	Description
	GP6PLUS12-2	GP6 PLUS scale, capacity 12 kg, division 2 g

Hanging scales for fishmongers: Options (to be specified when ordering the scale)

	Code	Description
	846171	Bowl-shaped pan RQ4S fitted with support, for hanging scales.

Connection cables

	Code	Description
	RTR802	Mini router for Wi-Fi connection between scales.

Pdf product page All the specifications and images can be subject to variations and upgrades without prior notice.
