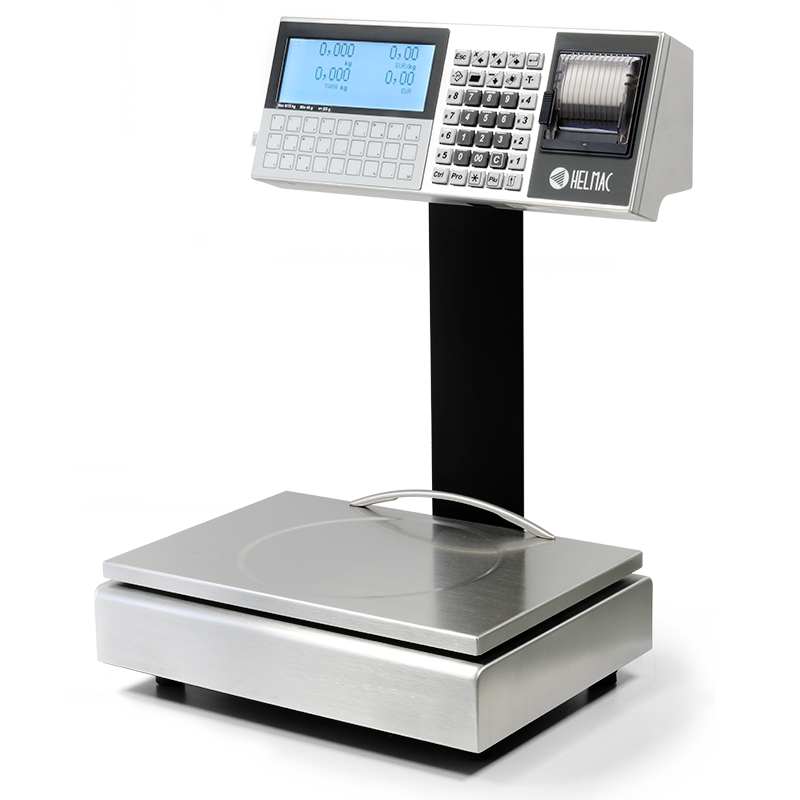

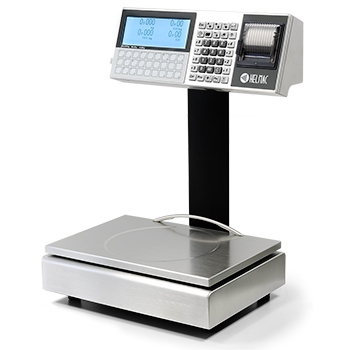

GPE SERIES "XL" ELECTRONIC RETAIL SHOP SCALES

	GPE SERIES "XL" ELECTRONIC RETAIL SHOP SCALES

INFORMATION

Available upon request
Approval:

Stainless steel retail scales, perfect for using in shop and working by battery. Plate protected from impacts and display, keyboard and printer mounted on sturdy column.

FEATURES

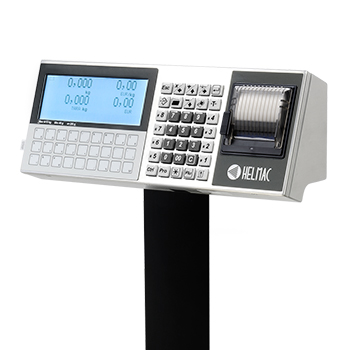

Dual alphanumeric backlight white LCD display, operator and client side. The backlight function can be removed.
Double waterproof keyboard consists of 27 membrane keys plu / functions easily customizable thanks to the special side pocket and 35 mechanics. 8 operator.
Thermal printer speed of 80mm/sec for normal thermal paper or for Linerless adhesive type with paper 57mm wide, and outer diameter max. 50mm.
Print width of up to 48mm.
System for easily loading the paper. Print function of the logo.
Stainless steel body, dimensions 389x335x500mm (LxWxH).
Stainless steel plate, 360x235mm (LxW) size.
230Vac power supply with long-lasting built-in rechargeable battery.

FUNCTIONS

Database of 3000 PLU's, 48 with direct access.
50 PLU groups.
600 ingredient lists.
9 VAT rates.
10 advertisement messages.
Queue-system.
8 payment modes.
2 kinds of short and long term totals.
20 operators, including 8 direct.
3 programmable password levels.
Operation mode: PLU priority, single item, multi-operator tickets.
Weighing tare, operator tare, PLU tare, pre-stored and configurable tare.
Prints logos, EAN13 and EAN8 barcodes, dynamic QR codes.
Reopening of the last operator ticket, discounts, rebates, cash management, customer management.

I/O SECTIONS

2 RS232 interfaces for connection to PC, modem, scanner, Helmac cash register.
RS485 interface for connection with up to 4 scales in a local network.

DOWNLOAD

Configuration_WiFi_EN.pdf	GP-GPE_01_14.02_EN-FR-DE-ES-IT.pdf
GP_6.03_User's_Manual EN.pdf	GP-GPE_01_14.02_EN-FR-DE-ES-IT.pdf
GPEXLV3EN.pdf	Last Firmware Revision News

Electronic retail scales for itinerant sales: VERSIONS

	Code	Description
	GPEXL615-1	GPEXL scale, 6/15 kg capacity, 2/5g division, with stainless steel structure and 360x235mm plate, dual backlit LCD display, double keyboard membrane/mechanical 62 Keys and thermal printer mounted on column.
	GPEXL1530-1	GPEXL scale, 15/30 kg capacity, 5/10g division, with stainless steel structure and 360x235mm plate, dual backlit LCD display, new keyboard membrane/mechanical 62 keys and thermal printer mounted on column.
	GPEXL1230-1	GPEXL scale, 12/30kg capacity, 2/5g division, with stainless steel structure and 360x235mm plate, dual backlit LCD display, new keyboard membrane/mechanical 62 keys and thermal printer mounted on column.

Calibration options

	Code	Description
	881018	Version 3/6 kg, division 1/2g.

Electronic retail scales for itinerant sales: COMMUNICATION INTERFACES (to be specified when ordering the scale)

	Code	Description
	810072	Ethernet interface kit for connecting the scales to the PC.
	810073	Ethernet-USB interface kit for connecting the scales to the PC and in a network.
	810183	Ethernet WIFI module to create a scale network and connect to PC.
	810184	Ethernet WIFI module fitted with USB port, to create a scale network and connect to PC (max.4 scales without access point, up to 8 scales with access point).
	842527	Micro Sd for image management via Ethernet (and taxation if applicable)

Electronic retail scales for itinerant sales: OPTIONS (to be specified when ordering the scale)

	Code	Description
	810010	Stainless steel bowl-shaped plate ("svizzera" type), dimensions 310 x 410 mm, height 50 mm.
	810116	Connection for 12/24Vdc power supply for itinerant sales. Can only be ordered in combination with a scale.
	810191	Connection for 12/24Vdc power supply for itinerant sales.
	700500	Painted metal cash drawer for coins and bills, size: 405x355x90mm, fitted with 4 compartments for bills and 8 compartments for coins; electronically managed through the keyboard.Please note: Requires code 810252.
	700506	Stainless steel cash drawer for coins and bills, size: 425x410x110mm, fitted with 6 compartments for bills and 8 compartments for coins; electronically managed through the keyboard. Please note: Requires code 810252.
	810161	Opening of cash register drawer.
	810232	Custom-made header ticket complete with logos. Note: the customisation is possible after an analysis of the Helmac technical staff.
	810171	Predisposition for connection at external platform

Electronic retail scales for itinerant sales: CABLES

	Code	Description
	806002	Ethernet shielded cable 3 m long for connection between scales/network.
	806005	Ethernet shielded cable 5 m long for connection between scales/network.
	821235	Cable 2,5m long for connecting the scale to the PC.
	841239	USB-RS232 cable 1,8 m long for the connection between the scale and the PC, fitted with USB connector on PC side and RJ connector on scale side.
	880155	Connection kit to external labelling machine

Electronic retail scales for itinerant sales: ACCESSORIES

	Code	Description
	840064	Stainless stess cover for printer protection against water, dust and residues of weighed products.
	880207	Barcode scanner 2d
	880210	Laser barcode scanner

Electronic retail scales for itinerant sales: EXPENDABLE MATERIALS

	Code	Description
	880042	72 rolls of Linerless thermal sticker paper 20m long, 56,5mm wide. 48,5mm outer diameter. 12mm diameter central hole.
	880043	100 rolls of thermal paper, 57mm x 30m size, 51mm outer diameter, 12mm diameter of central hole.
	880079	100 rolls of thermal paper, with internal thermal side, 57mm x 30m size, 51mm outer diameter, 12mm diameter of central hole.

Spare parts

	Code	Description
	874063	Thermal printer for GPE.

Pdf product page All the specifications and images can be subject to variations and upgrades without prior notice.
