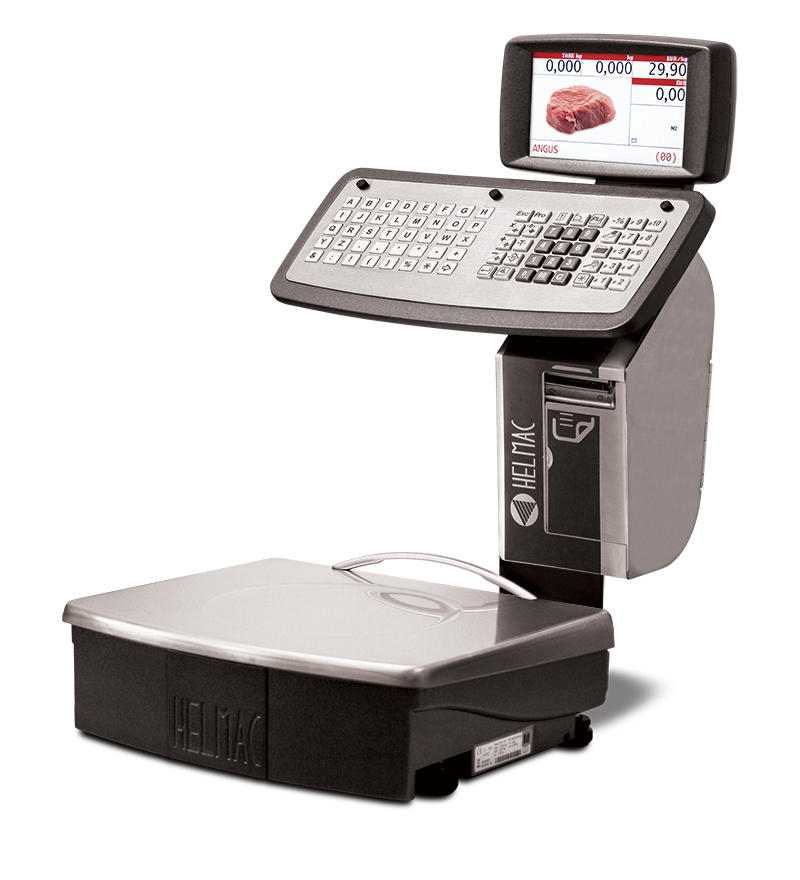

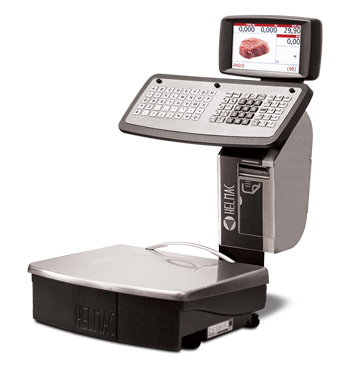

GP1 COLOR WITH HIGH DEFINITION COLOR DISPLAY

	GP1 COLOR WITH HIGH DEFINITION COLOR DISPLAY

INFORMATION

Available upon request
Approval:

Scales for shop and supermarkets use with high performance color display 7". Fitted with printer / labeller with the rewinder printing and high speed printing. The new design ensures completely freedom on the weighing surface, facilitating the work of those who use it.

MAIN FEATURES

Double TFT 7" color display .
Mechanical and waterproof keyboard, with 80 keys of which 40 PLU's with direct access (80 with dual access) and 40 functional keys.
Thermal printer/labeller (usable with thermal paper). 8 dots/mm resolution.
Print width up to 55 mm.
Paper roll width of up to 63 mm, external diameter of 110 mm.
DIE-CAST ALUMINIUM base. Stainless steel and polymer structure.
Stainless steel plate, 375 x 315 mm (LxW) size.
230 Vac power supply, complete with built-in rechargeable 24 Vdc buffer batteries.

FUNCTIONS

Selectable operating modes: ticket, pricing-labelling, single article or self-service.
"Quick labelling" function which allows to print labels, on adhesive paper, between a ticket and the other.
20 operators.
Database of 7000 PLU’s, 80 with direct access.
50 PLU groups.
8 preset tares and memory for 20 active tares selectable by the operators.
999 ingredient lists.
99 product traceablities.
9 VAT rates with a strips function.
10 advertisement messages.
Queue-system.
8 payment modes.
3 programmable password levels.
Easy software for images management included
Storage and reopening of daily tickets.
Cancellations, discounts, special offers, hourly sales reports, customer management.
Totals for operators, PLUs, article groups, VAT rates, and short and long term payment types.
PLU priority work mode.
Prints logos, EAN13 and EAN8 bar codes, dynamic QR Codes, price tags with the total, lot, ice.
Management of logos and firmware with the HLL (Helmac Label Loader) software downloadable from the web site.

I/O SECTIONS

2 RS232 interfaces for connection to: PC, modem, scanner, cash register.
RS485 interface for connection with up to 16 GP series’ scales in a network.
Ethernet connection.

DOWNLOAD

Configuration_WiFi_EN.pdf	GP-GPE_01_14.02_EN-FR-DE-ES-IT.pdf
GP_6.03_User's_Manual EN.pdf	GP-GPE_01_14.02_EN-FR-DE-ES-IT.pdf

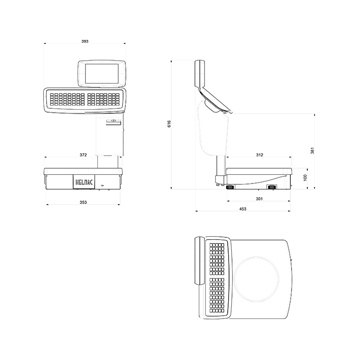

GP1_AP_dimensions.pdf	Last Firmware Revision News

Retail scales: AVAILABLE VERSIONS

	Code	Description
	GP1COLOR1230-1	Scale GP1COLOR 12/30 kg capacity, 2/5 g division, with stainless steel structure and 375x315 mm plate, with hight definition color display on column, 80-key mechanical keyboard and thermal printer/labeller. Included Ethernet.

Calibration options

	Code	Description
	881018	Version 3/6 kg, division 1/2g.

Retail scales: OPTIONS (to be specified when ordering the scale)

	Code	Description
	810000	Stainless steel bowl-shaped plate with discharge outlet, dimensions 330 x 385 mm, height 45 mm, for scales with column.
	700500	Painted metal cash drawer for coins and bills, size: 405x355x90mm, fitted with 4 compartments for bills and 8 compartments for coins; electronically managed through the keyboard.Please note: Requires code 810252.
	700506	Stainless steel cash drawer for coins and bills, size: 425x410x110mm, fitted with 6 compartments for bills and 8 compartments for coins; electronically managed through the keyboard. Please note: Requires code 810252.
	810252	Opening of cash register drawer.
	810231	Custom-made labels (logo insertion, setting of label, header, closing messages, etc). Note: the customisation is possible after an analysis of the Helmac technical staff.
	880155	Connection kit to external labelling machine
	847243	Power supply 24V, 3A for use of the scale even without batteries (to be checked according to the type of label)
	810171	Predisposition for connection at external platform
	840069	Protective treatment for use in saline and harsh environments.

Retail scales: Communication interfaces (to be specified when ordering the scale - installation à l'usine)

	Code	Description
	810180	Ethernet WIFI module to create a scale network and connect to PC.
	810172	Ethernet WIFI module fitted with USB port, to create a scale network and connect to PC (max. 4 scales without access point, up to 8 scales with access point).
	810065	Access Point WI-FI for scales network.
	806020	USB cable for image transfer with Ethernet

Retail scales: CABLES

	Code	Description
	806002	Ethernet shielded cable 3 m long for connection between scales/network.
	806005	Ethernet shielded cable 5 m long for connection between scales/network.
	821235	Cable 2,5m long for connecting the scale to the PC.
	841239	USB-RS232 cable 1,8 m long for the connection between the scale and the PC, fitted with USB connector on PC side and RJ connector on scale side.
	880155	Connection kit to external labelling machine

Retail scales: EXPENDABLE MATERIALS

	Code	Description
	880049	20 rolls of thermal paper, 60mm x 130m size, 109mm outer diameter, 40mm diameter of central hole.
	880050	20 rolls of adhesive thermal paper, 59mm x 57m size, 109mm outer diameter, 40mm diameter of central hole.
	880034	24 rolls of 1000 white labels, 58x53mm size, 40mm diameter of central hole.
	880035	32 rolls of 1000 white labels, 58x43mm size, 40mm diameter of central hole.
	880036	24 rolls of 900 white labels, 58x60mm size, 40mm diameter of central hole.
	880037	24 rolls of 750 white labels, 58x74mm size, 40mm diameter of central hole.
	880080	24 rolls of 600 white labels, 58x92mm size, 40mm diameter of central hole, 107mm external diameter.

Retail scales: Accessories

	Code	Description
	810065	Access Point WI-FI for scales network.
	880210	Laser barcode scanner
	880207	Barcode scanner 2d
	880143	Plexiglas protection for scale plate.

Pdf product page All the specifications and images can be subject to variations and upgrades without prior notice.
